QT5-15 is our hot sale automatic block machine, suitable for making hollow blocks, solid bricks, pavers and curbstone, this machine is automatic controlled by PLC, the cycle time is 15-25s, so production speed is very fast, for 8inches hollow blocks, it can produce more than 9600pcs per day. This machine adopts hydraulic pressure technology, the vibration and hydraulic pressure work together can ensure the block quality with a high density, and the block face looks very flat and very beautiful.
It adopts our advanced hydraulic system and vibration system, can ensure the block quality very good and the working noise very low. We cooperated with SIEMENS, SCHNEIDER, OMRON, CALYCA and so on to make sure our block machine with high quality and keep our machine work more stable.
Technical Specifications | |
Overall Dimension | 5120x1950x2810mm |
Rated pressure | 16Mpa |
Main vibration form | Platform vibration |
Cycle Time | 15-25 seconds |
Vibrating Frequency | 2800-4500 rolls/minute |
Motors Power | 28.75 KW |
Pallet Size | 1100x550mm |
Brick Raw Materials | crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
Applied Products | Hollow block, solid bricks, Paving blocks, Curbstone and so on |
Applied Fields | widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc. |
Block | Size(mm)L*W*H | Molding cycle | QTY/Mould | Qty/hour | Qty/8hr | |
Hollow block | | 400x200x200 | 15-20s | 5pcs | 900-1200pcs | 7200-9600pcs |
Hollow block | | 400x150x200 | 15-20s | 6pcs | 1080-1440pcs | 8640-11520pcs |
Hollow block | | 400x100x200 | 15-20s | 9pcs | 1620-2160pcs | 12960-17280pcs |
Solid brick | | 240x115x53 | 15-17s | 32pcs | 6770-7680pcs | 54160-61440pcs |
Paver | | 225x112.5x60 | 15-25s | 16pcs | 2300-2880pcs | 18430-23040pcs |
Paver |
| 200x100x60 | 15-25s | 18pcs | 2592-4320pcs | 20736-34560pcs |
Paver | | 200x160x60 | 15-25s | 12pcs | 1728-2880pcs | 13824-23040pcs |

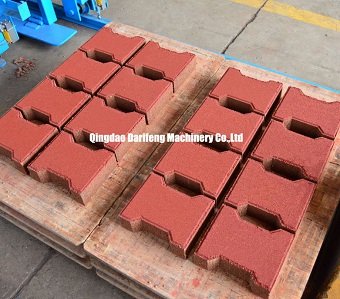

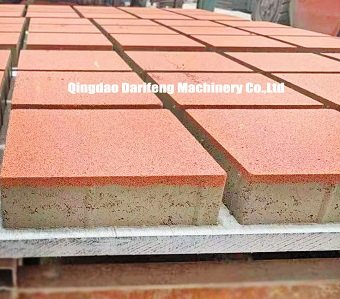

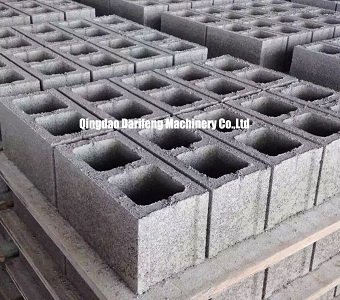

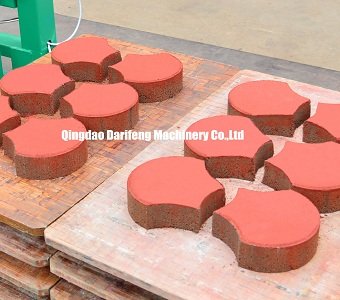

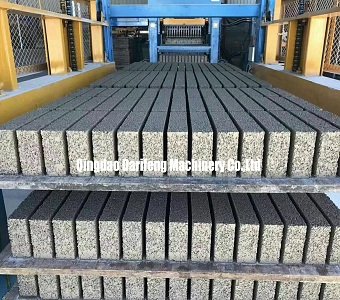

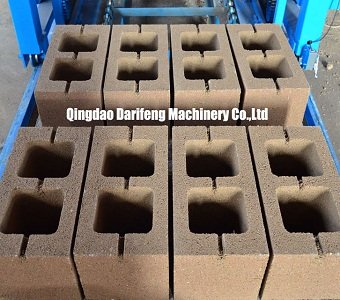

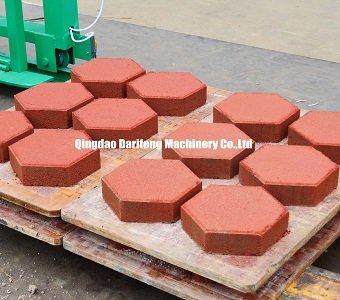

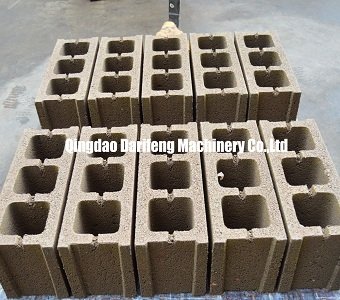

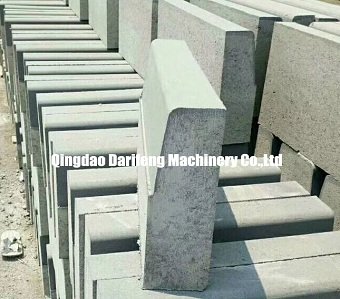

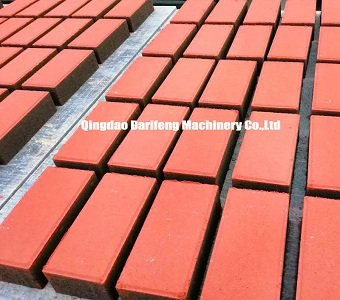

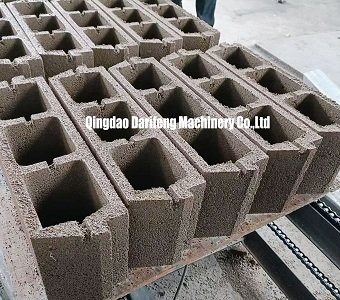

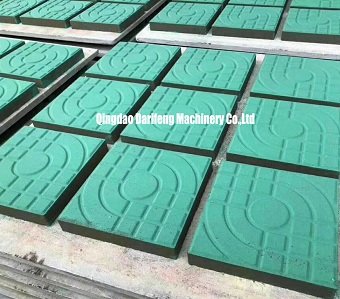

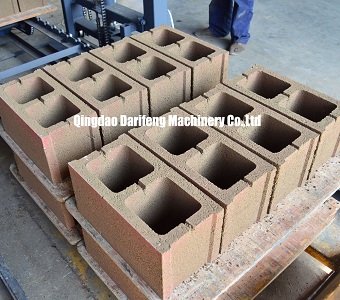

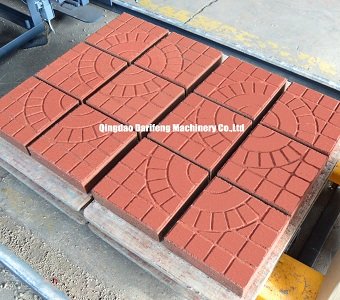

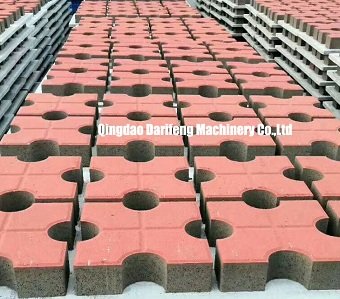

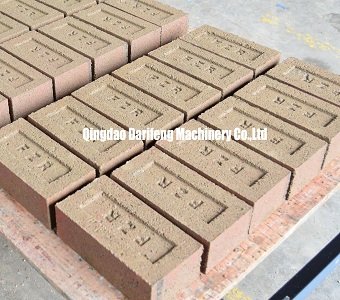

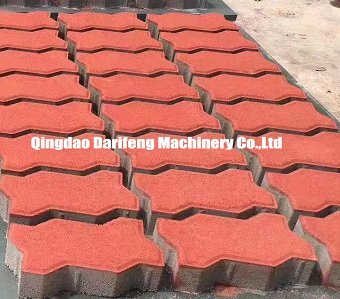

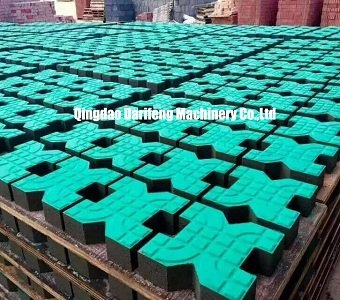

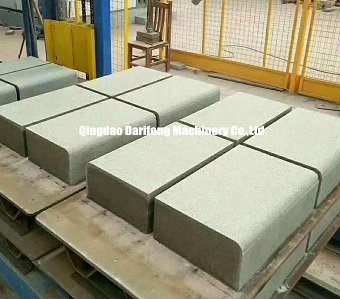

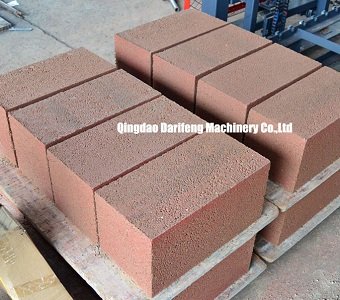

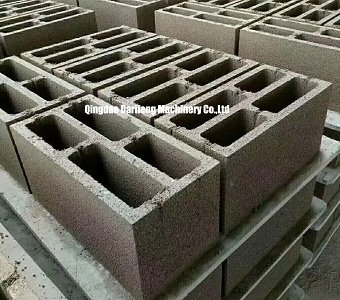

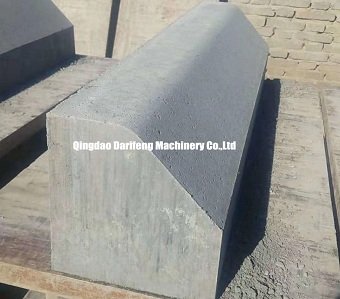

| Finished Blocks Display |
