M7MI brick machine is a small hydraulic interlock brick machine, it is very popular because it offers multiple advantages: an integrated pan mixer, diesel engine all fitted on one frame making it a mini mobile factory. It is ideal for small to medium size projects producing around 3000 blocks per day equivalent to 80-100 m of wall. Multiple machines can be used on bigger projects to increase production.
| Advantages |
M7MI is our newest mini hydraulic clay brick making machine, can make one pcs brick one mold .Which has one oil cylinders, imported cylinder, motor & valve from Japan and Italy. It uses clay or soil or concrete materials. It work with diesel engine, so it is very good for the place where there is no power or electricity. One machine can produce different kinds of interlocking block by changing moulds. When building, just lock them together.
Technical Specifications | |
Model | M7MI |
Pcs/mould | 1Pcs |
Cycle Time | 20 seconds |
Capacity | 1440pcs/8hours |
Hydraulic pressure | 16Mpa |
Power | 8hp |
Dimension | 2720x1400x1770mm |
Weight | 950kgs |
Raw Materials | Clay, soil, cement, concrete, fly ash, stone powder and so on. |
Applied Products | Solid bricks, Hollow bricks, interlocking bricks, Paver bricks and so on |
Applied Fields | widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc. |
Brick | Size mm L*W*H(mm) | Moulding cycle | QTY/Mould | Qty/hour | Qty/8hr | |
No.1 Brick |
| 300x150x100 | 20s | 1pcs | 180pcs | 1440pcs |
No.2 brick |
| 300x150x100 | 20s | 1pcs | 180pcs | 1440pcs |
No.4 brick |
| 230x220x115 | 20s | 1pcs | 180pcs | 1440pcs |
No.6 brick |
| 300x150x100 | 20s | 1pcs | 180pcs | 1440pcs |
No.9 brick |
| 300x150x100 | 20s | 1pcs | 180pcs | 1440pcs |
No.16 brick |
| 300x150x100 | 20s | 1pcs | 180pcs | 1440pcs |
No.24 brick |
| 300x150x100 | 20s | 1pcs | 180pcs | 1440pcs |
No.26 brick |
| 225x112.5x80 | 20s | 1pcs | 180pcs | 1440pcs |
No.28 brick |
| 200x100x80 | 20s | 1pcs | 180pcs | 1440pcs |

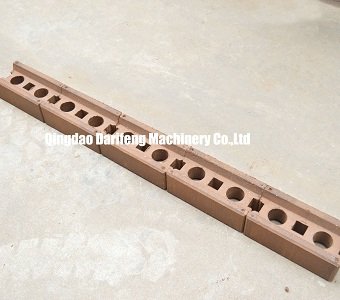

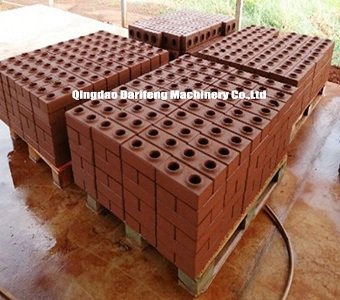

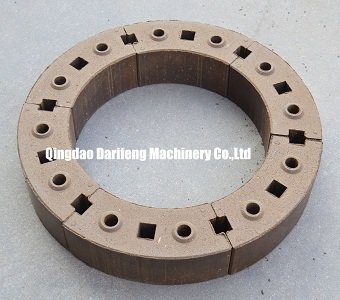

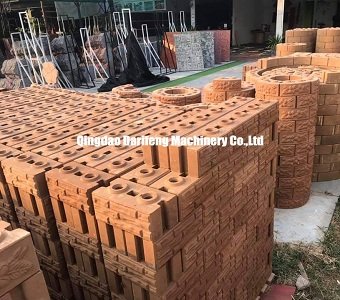

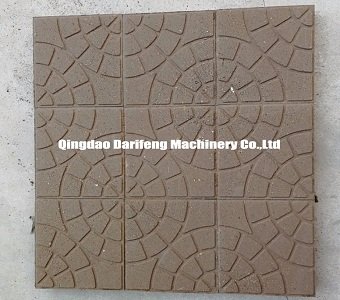

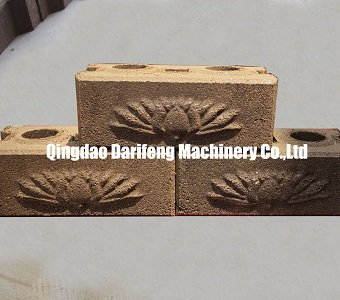

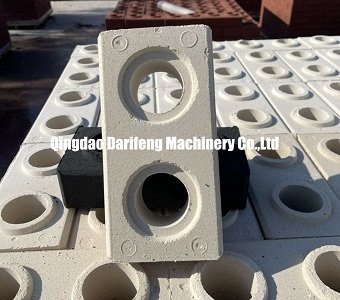

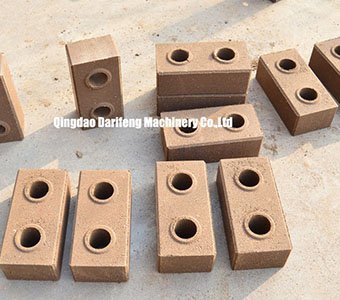

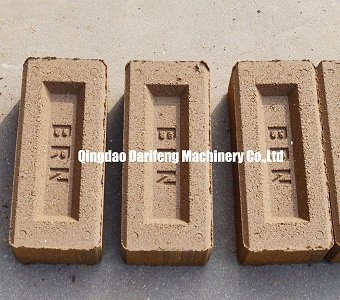

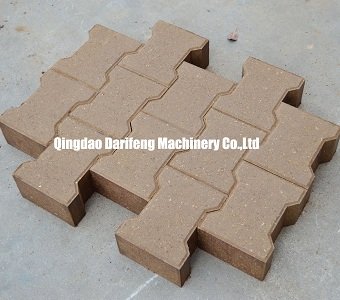

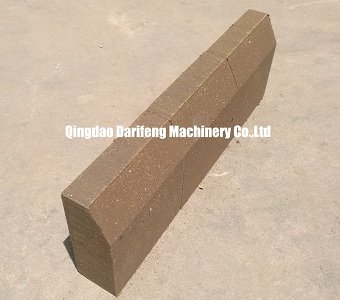

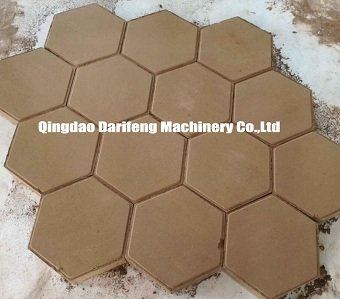

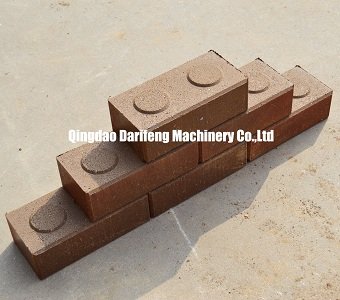

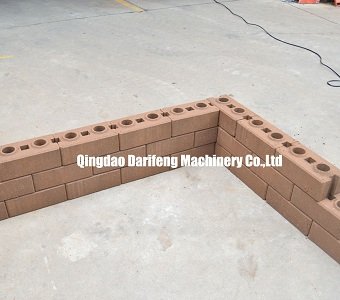

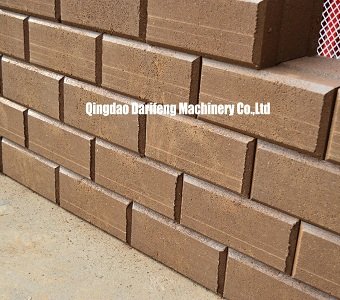

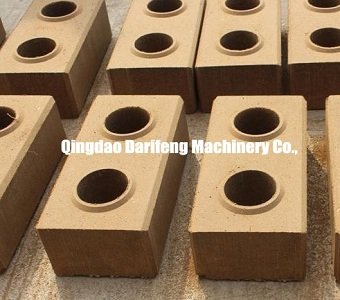

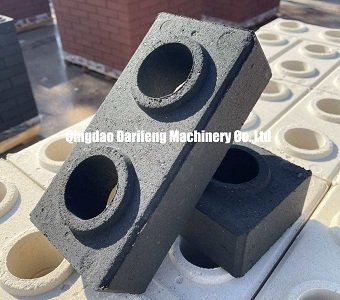

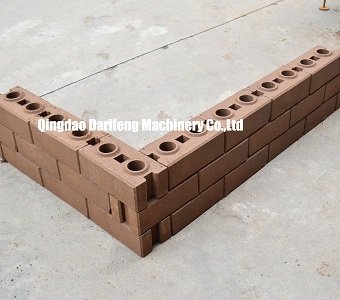

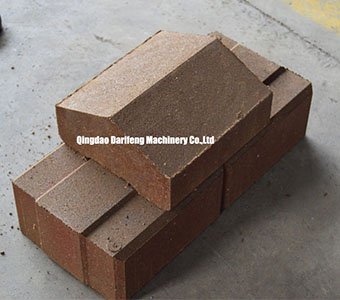

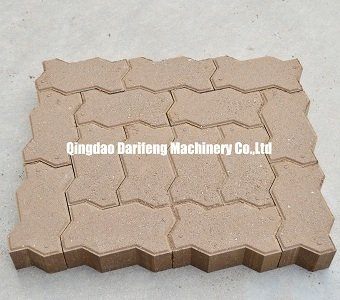

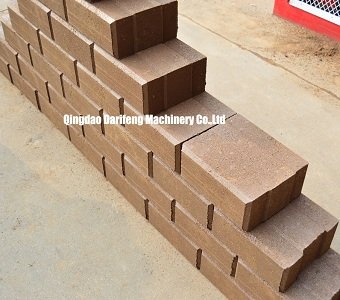

Finished blocks display |
