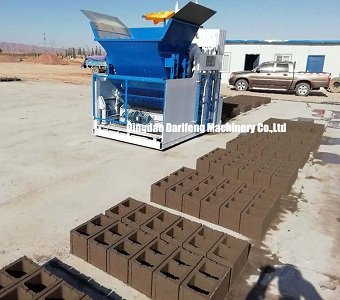

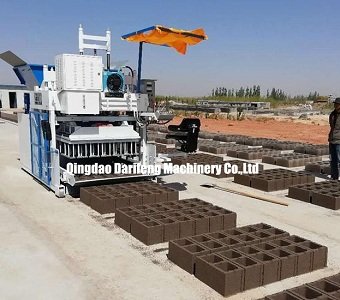

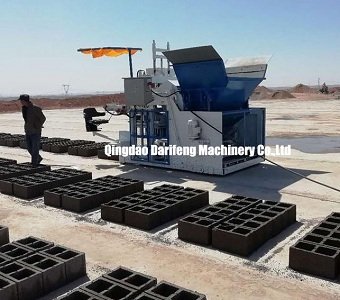

QM4-45 Mobile diesel block machine

QM4-45 is our hot sale block machine model, it mobile machine with the wheels and moving on the ground directly, so no need pallet. it's easy to operate it, mainly produce hollow blocks.We will give you one mould is free, it has the following advantages.

share:
Product Details
Advantages

◆ It is mobile, so no need pallets, can save much cost compare with the fixed machine.

◆ It is powered by diesel engine, no need electric, so very suitable for the place where there is short of electric.
◆ It can produce many types hollow blocks by changing the moulds.
◆ Operation is very easy, only need one workers can operate it.
◆ Working stable, one machine can use more than 10years no problem.
◆  Price cheaper, attract many customers to buy it.


Technical Specifications

Overall Dimension

1500x1350x1200mm

Rated pressure

10Mpa

Main vibration form

Mould vibration

Cycle Time

45 seconds

Vibrating Frequency

2800-4500 rolls/minute

Power

Diesel engine 6KW

Pallet Size

No need pallet

Weight

900kgs

Brick Raw Materials

crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.

Applied Products

Hollow block, solid bricks, Paving blocks, Curbstone and so on

Applied Fields

widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc.



Block

Size(mm)L*W*H

Molding cycle

QTY/Mould

Qty/hour

Qty/8hr

Hollow block


400x200x200

45s

4pcs

360pcs

2880pcs

Hollow block


400x150x200

45s

5pcs

480pcs

3840pcs

Hollow block


400x100x200

45s

7pcs

720pcs

5760pcs

Solid brick


240x115x53

45s

26pcs

2080pcs

16640pcs

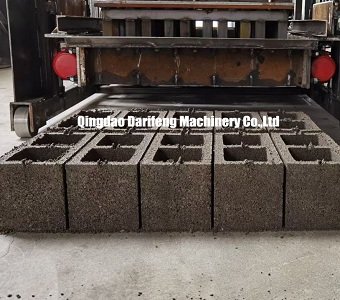

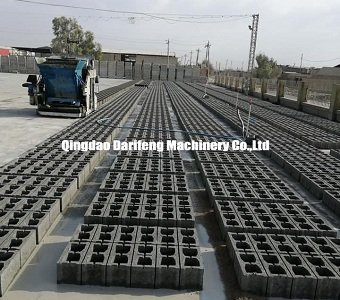

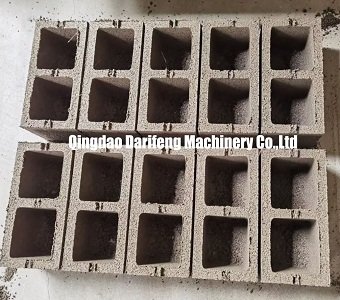

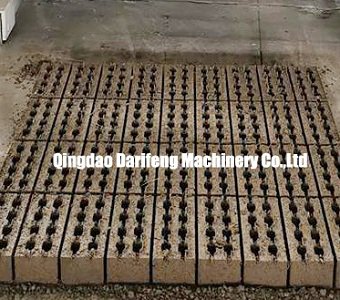

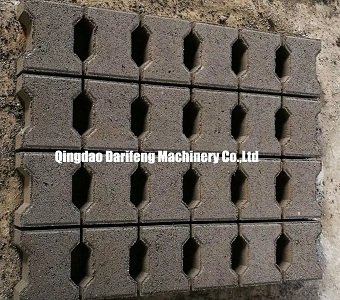

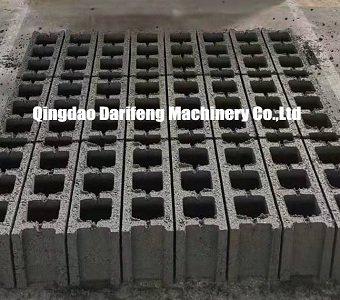

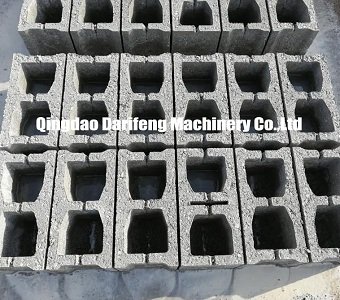

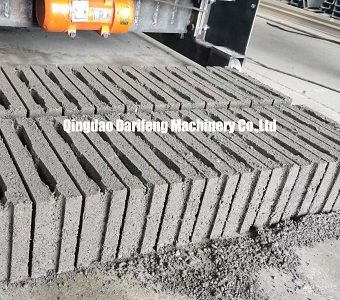

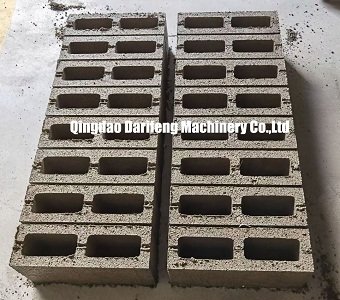

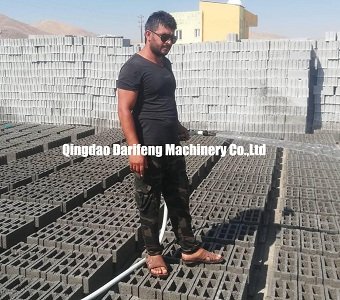

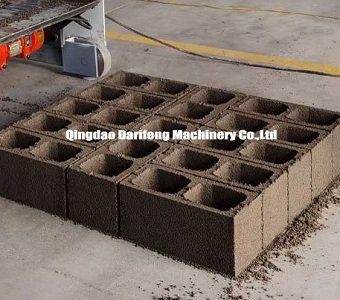

Finished blocks display
